5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | HuaXin |
| प्रमाणन | ISO14001/ISO9001/IATF16949 |
| मॉडल संख्या | HX05S-30MI-A1 |
| दस्तावेज | HX05S-30MI-A1-spec.pdf |
| न्यूनतम आदेश मात्रा | 1000 |
| मूल्य | विनिमय योग्य |
| पैकेजिंग विवरण | ब्लिस्टर+फोम बॉक्स+बबल बैग+इनसाइड कार्टन+मास्टर कार्टन |
| प्रसव के समय | 6weeks ~ 8weeks |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | प्रति माह 100 हजार |
उत्पाद विवरण
| प्रदर्शन प्रौद्योगिकी | टीएफटी रंग प्रदर्शन | नाम | टीएफटी डिस्प्ले |
|---|---|---|---|
| आकार | 5" | संकल्प | 720*720 |
| ड्राइविंग आईसी | JD9365TX | देखने का कोण | मुक्त |
| इंटरफ़ेस | एमआईपीआई | चमक | 460C/डी |
उत्पाद विवरण
HX05S-30MI-A1 is 5 inch 720x720 square color TFT display ,MIPI interface ,JD9365TX driving IC, 460c/d
Product Specifications
| Part NO. | HX05S-30MI-A1 |
| Display Technology | TFT display |
| Diagonal Screen Size | 5 inch square TFT display |
| Active Area (mm) | 91.368*91.368 |
| Panel size(mm) | 93.67(H)*96.87(V)*2.15(D) |
| Brightness(cd/m2) | 460c/d |
| Resolution | 720(RGB)x720 |
| Interface | MIPI |
| View angle | ALL |
| Driving IC | JD9365TX |

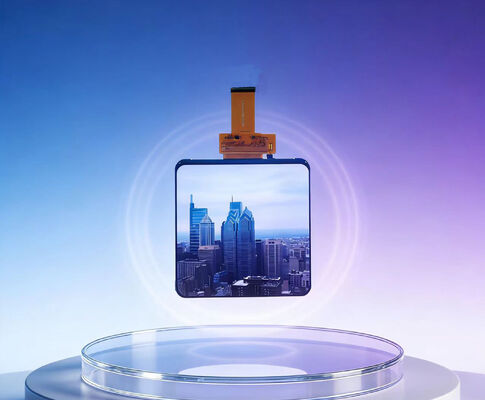

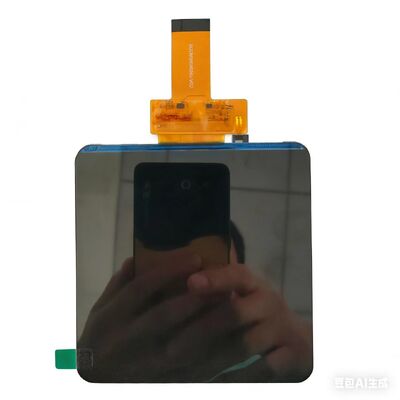

Product Images

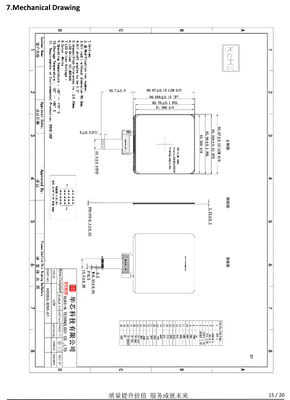

Technicl drawing
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
- Cost-effective factory base in inland city
- Advanced equipment for stable quality
- Automated processes for efficiency and consistency
- Expert engineering team with 20+ years experience
- Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
- Registered capital: 20 million
- Current staff: 500+ employees
- R&D accounts for 10% of workforce
- QC accounts for 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Excellent image quality with high resolution, sharpness, and color accuracy
- Fast response times for quick pixel switching
- Wide viewing angles with minimal color shifts
- Energy-efficient operation
- Available in various sizes from small handheld to large panel displays
- LED backlighting for screen illumination
- Wide range of applications across multiple industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Limited contrast ratio
- Backlighting requirements and power consumption
- Response time limitations and potential motion blur
- Limited flexibility in display form factors
- Limited color gamut range
