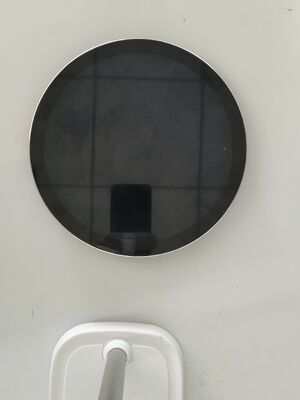

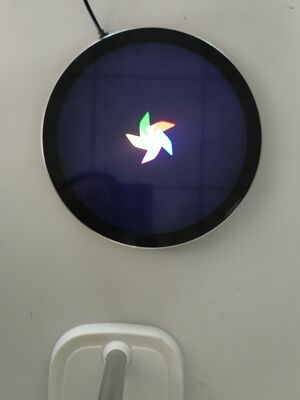

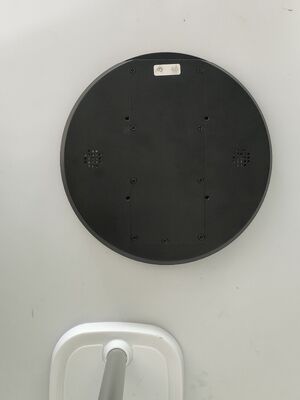

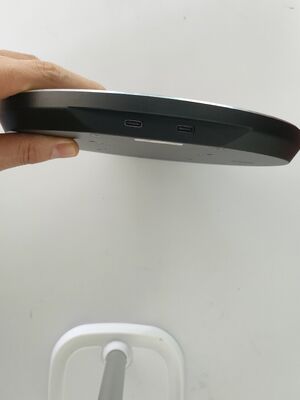

7 inch round TFT display module with 1080x1080 resolution, 800c/d brightness and MIPI interface
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | HuaXin |
| प्रमाणन | ISO14001/ISO9001/IATF16949 |
| मॉडल संख्या | HX070R-40MT-A1 |
| दस्तावेज | HX070R-40MT-A1 Spec.pdf |
| न्यूनतम आदेश मात्रा | 1 ~ 50 |
| मूल्य | US$242~USD$240 |
| पैकेजिंग विवरण | ब्लिस्टर+फोम बॉक्स+बबल बैग+इनसाइड कार्टन+मास्टर कार्टन |
| प्रसव के समय | 6weeks ~ 8weeks |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | प्रति माह 100 हजार |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| प्रदर्शन प्रौद्योगिकी | टीएफटी एलसीडी प्रदर्शन | नाम | 7 इंच गोल टीएफटी |
|---|---|---|---|
| आकार | 7.0 ” | संकल्प | 1080x1080 |
| इंटरफ़ेस | मिपी | 3डी | 3डी नहीं |
| देखने का कोण | फ्री व्यू एंगल | चमक | 800सी/डी |
| प्रमुखता देना | 1080x1080 resolution round TFT display,800c/d brightness TFT display module,MIPI interface 7 inch round TFT display |
||
उत्पाद विवरण

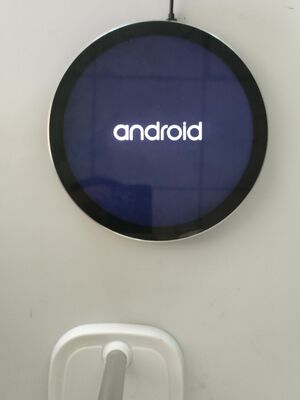

7" TFT Display Module with Android System
High-resolution 7-inch round TFT display module featuring Android system compatibility, 1080×1080 pixel resolution, and 800 cd/m² brightness with MIPI interface.
Technical Specifications
| Part Number | HX070R-40MT-A1 |
| Display Size | 7 inch round TFT display |
| Outline Dimensions | 192.75mm (H) × 191.58mm (V) × 4.75mm (D) |
| Active Area | 177.55mm (H) × 177.55mm (V) |
| Resolution | 1080 × 1080 pixels |
| Interface | MIPI |
| Brightness | 800 cd/m² |
| Viewing Angle | All directions |
| Driving IC | FL5893DC |
Technical Drawing
TFT Technology Overview
Manufacturer Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Most processes use fully automatic equipment for efficiency
- Professional engineers with 20+ years experience in LCD field
- Self-design capability for customized products
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS Certification for LCD modules
Product Range
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
- Registered capital: 20 million
- Current staff: 500+ employees
- R&D accounts for 10% of workforce
- Quality control accounts for 15% of workforce
Production Capacity
| Annual Production Capacity | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive displays & medical devices
- Fitness equipment & handheld devices
- Industrial control systems and home appliances
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching (40ms)
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: Lower power consumption than other display technologies
- Size and Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: LED backlight system for illumination
- Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
- Viewing Angles: Some limitations compared to other technologies
- Contrast Ratio: Not as high as some alternatives
- Power Consumption: Backlighting increases power needs
- Motion Blur: Potential for blur in fast-moving images
- Flexibility: Limited compared to newer display types
- Color Gamut: Somewhat restricted color range
